Introduction: The Puzzle of Overflow Pages
Imagine buying a poster that’s too big for the frames you have at home. To display it properly, you’d need to cut it into sections so it fits within the available frames. The same principle applies to SQLite databases when handling large records—they break them into parts and store them across multiple pages. This is where overflow pages come in.
Overflow pages store data that doesn’t fit within a single SQLite database page (typically 4,096 bytes). These pages are linked together, forming a chain that forensic analysts must reconstruct to recover complete data. If analysts fail to follow the overflow structure, they risk retrieving incomplete or corrupted evidence.
In this article, we’ll explore how overflow pages work, why they matter in forensic investigations, and how to extract fragmented data step by step.
What Are Overflow Pages in SQLite?
SQLite databases allocate a fixed page size (e.g., 4,096 bytes). However, when a record—such as an image stored as a BLOB (Binary Large Object)—exceeds this size, the excess data spills over into overflow pages.
Key Takeaways:
✅ Overflow pages prevent large records from monopolizing a single page.
✅ They’re linked in a chain, starting from the main page.
✅ Forensic analysts must reconstruct these chains to retrieve complete data.
Understanding how overflow pages work is essential for forensic investigations.
High-Level Overview: How Overflow Pages Work
To illustrate the concept of overflow pages, let’s look at the following examples:

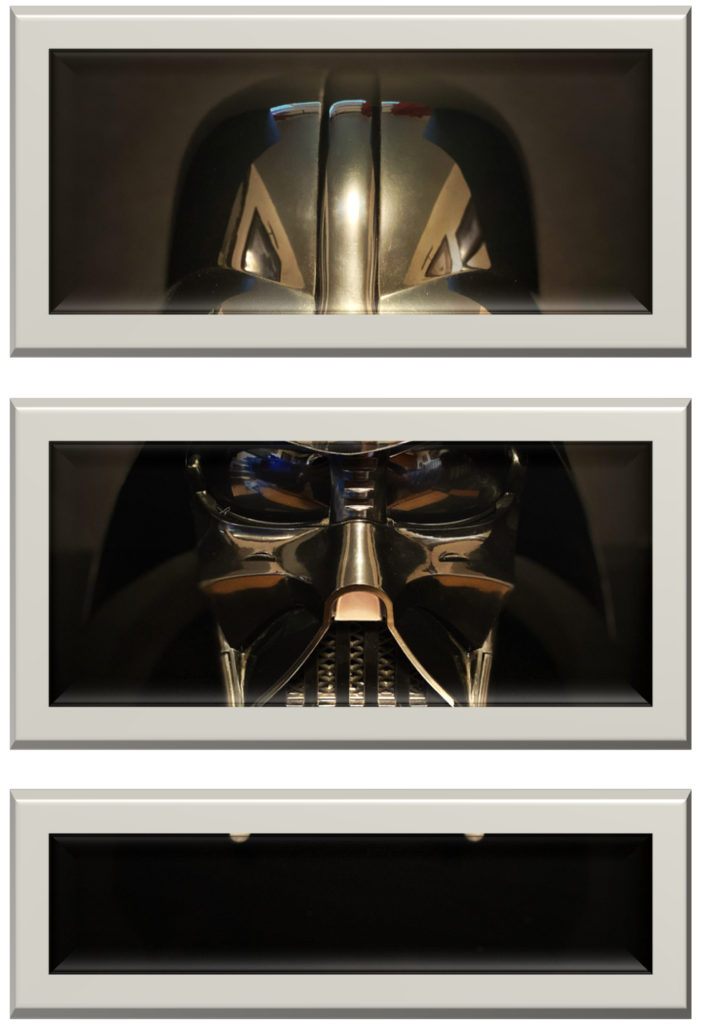

1. Fragmented Image Representation
This visualization represents how large BLOBs, such as images, are stored in SQLite. The image is broken into multiple sections, just as an overflow page stores fragmented data.

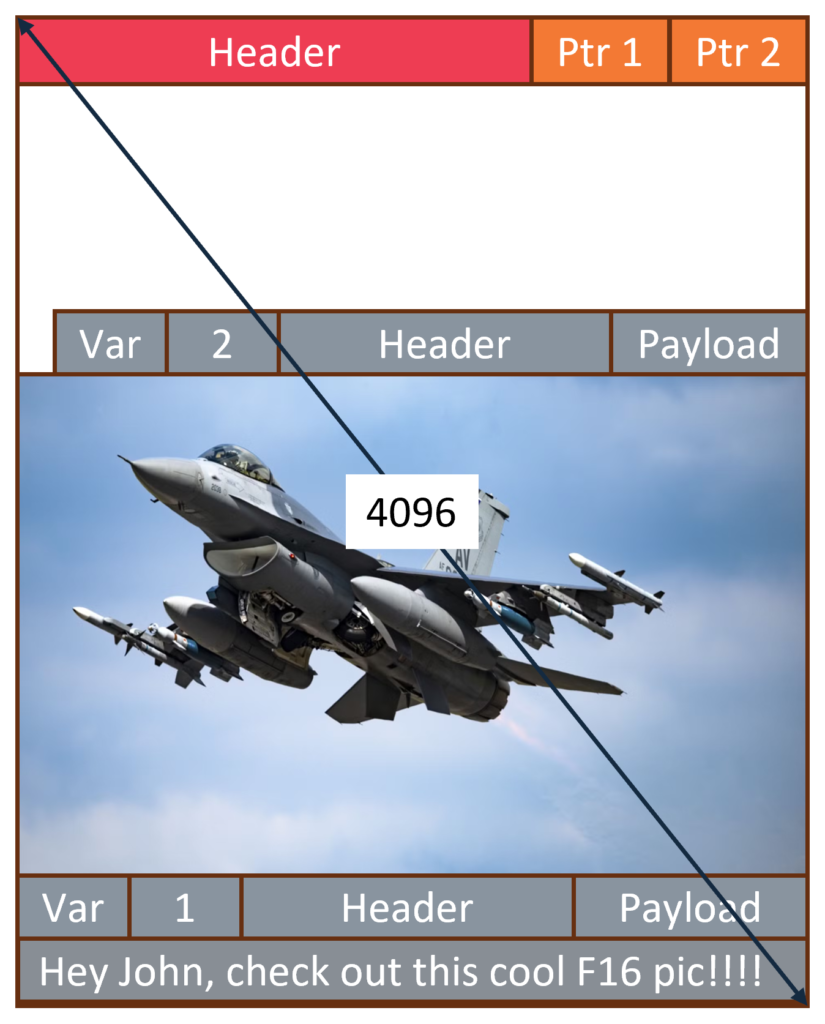

2. Data Stored on a Single Page
Here, an image fits entirely within one database page, eliminating the need for overflow pages.

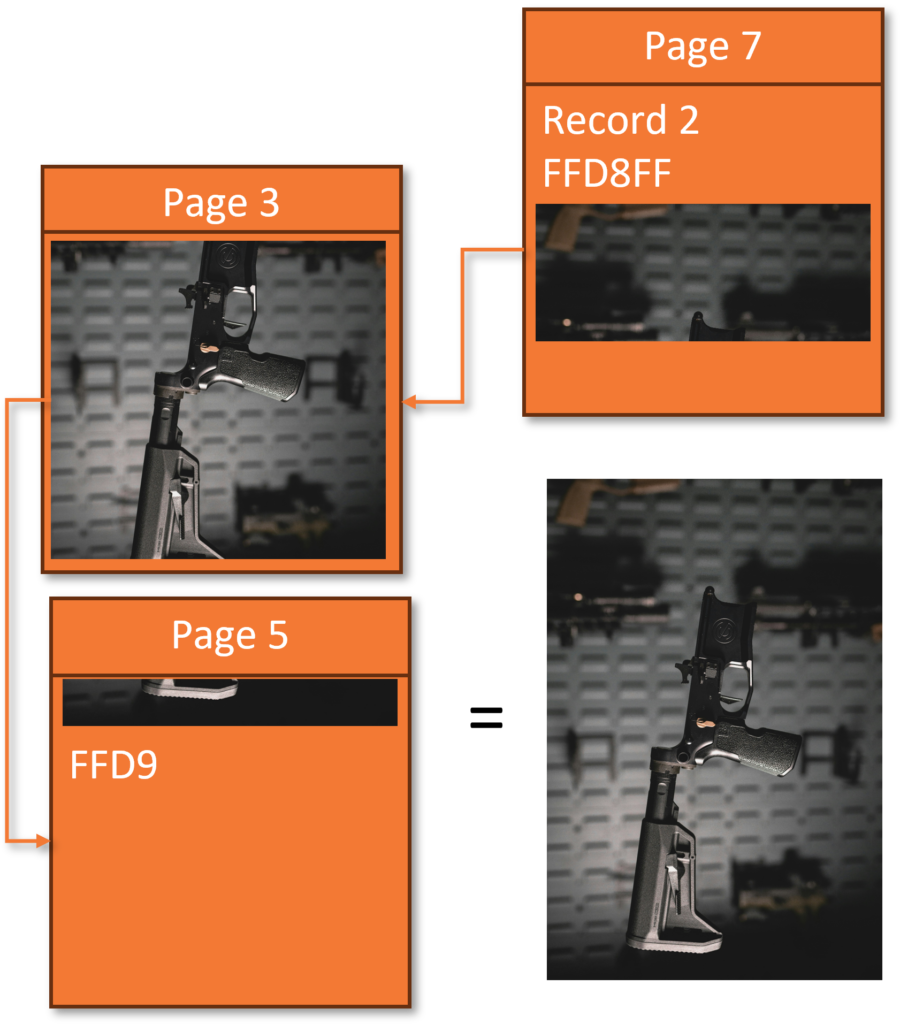

3. Data Split Across Multiple Pages
This example illustrates how data is stored in a non-contiguous manner, requiring forensic analysis to reconstruct it correctly.
4. Reconstructing Data from Overflow Pages
Following overflow page pointers allows forensic analysts to reassemble fragmented data.
Forensic Importance of Overflow Pages
Many messaging apps, mobile applications, and databases store user profile pictures, chat logs, and attachments in SQLite. When images and documents span multiple pages, forensic examiners must understand overflow structures to extract the data properly.
Forensic Challenges:
- Fragmented Data: BLOBs (such as images) are often split across multiple pages.
- Pointer-Based Retrieval: Analysts must follow SQLite’s overflow page pointers to reconstruct the full image or file.
- Carving Issues: Simply searching for a JPEG header (FFD8FF) and footer (FFD9) may fail because they may exist on separate pages.
Real-World Example: Extracting a Profile Picture from Overflow Pages
Now, let’s walk through a step-by-step forensic recovery of an image stored in an SQLite database.

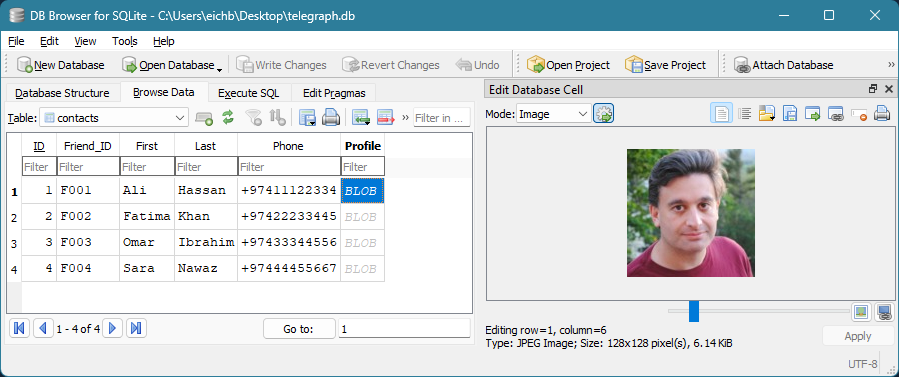

Locate the BLOB in the Database
Using DB Browser for SQLite, forensic analysts identify the record containing the profile picture in the contacts table.

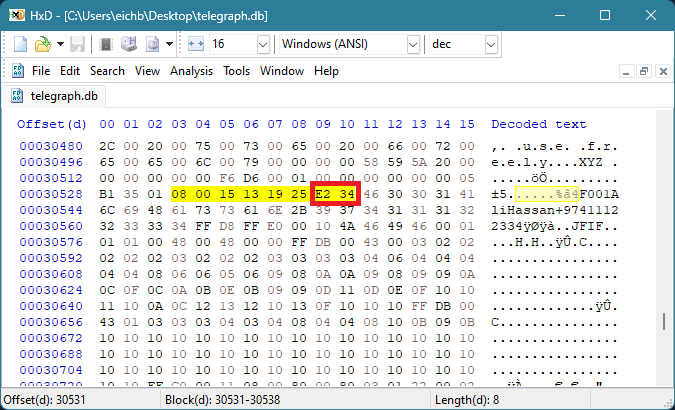

Identify the BLOB Length in Hex
Using HxD, a hex editor, they locate the record header, which contains a VARINT that determines the BLOB length.
Confirm the Image Size
The second VARINT in the record header specifies the image’s size. In this case, the total size is 6,325 bytes, exceeding the page limit.
Follow the Overflow Pointer
At the bottom of the main page, a four-byte pointer leads to page 4, which contains the next portion of the image.
Examine the Overflow Page
The first four bytes on page 4 indicate whether another overflow page follows. Since the value is 0x00000000, this is the last overflow page.

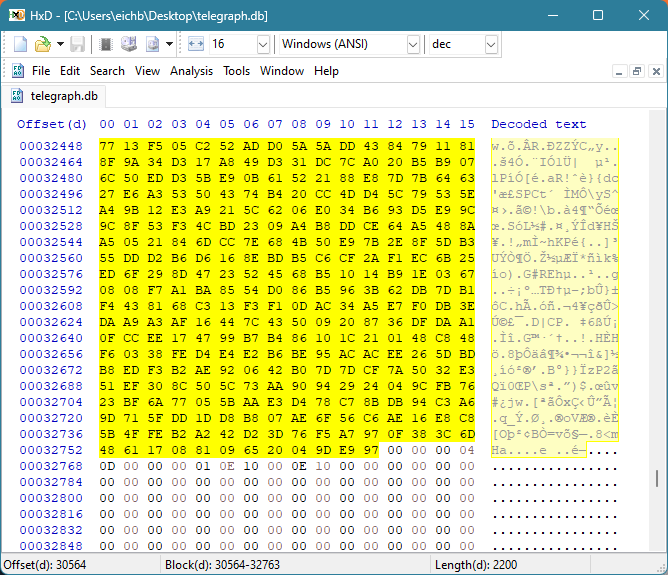

Extract and Reconstruct the Image
Forensic analysts extract the 6,292 bytes of the image from both pages and manually reconstruct it.
📌The four-byte pointers are NOT part of the data to be included in the carved image

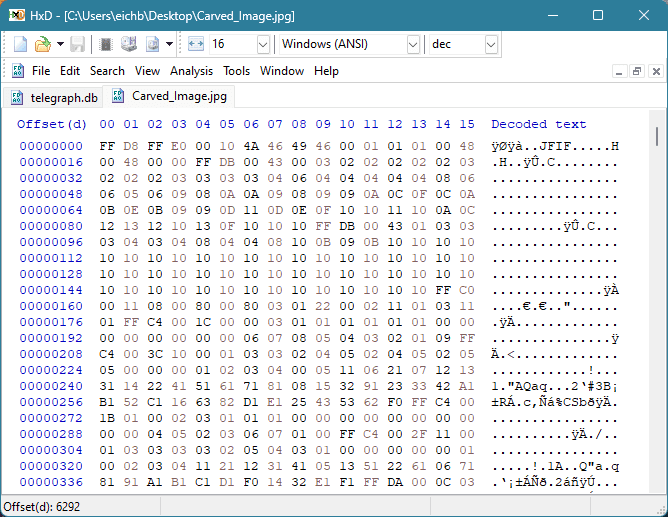

Verify the Recovered Image
The extracted image is now fully restored and viewable.
Final Thoughts: The Importance of Overflow Page Analysis
In forensic investigations, overlooking overflow pages can lead to critical evidence loss. Understanding SQLite’s storage mechanism is crucial for accurate data extraction and reconstruction.
Key Forensic Insights:
✔️ Always check for overflow pageswhen analyzing large records.
✔️ Follow SQLite’s overflow pointerscarefully.
✔️ Simple file carving techniques may not work due to non-contiguous storage.
Whether analyzing chat databases, contact lists, or application logs, forensic professionals must be proficient in recovering fragmented data.
💡 Have you encountered fragmented data in SQLite forensics? How do you approach overflow page analysis? Share your insights below!
